Humminbird New Release Of Software

[mo4packer]

Wow! thanks for sharing! Hope to see more.

[jeb]

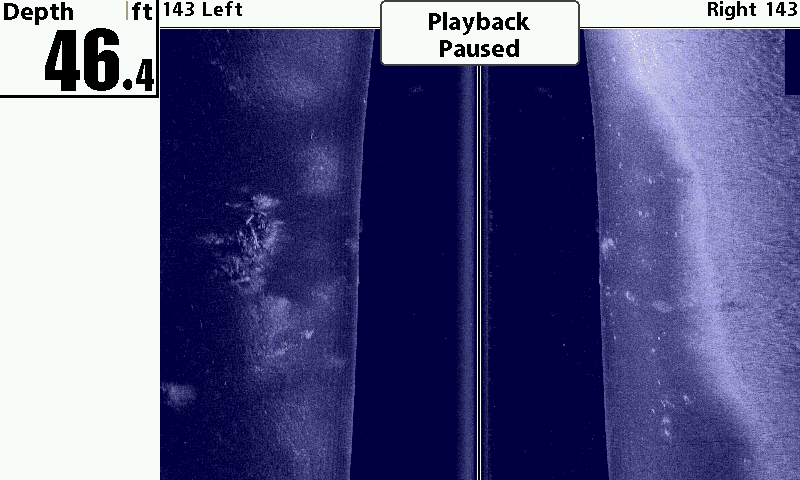

Here's one SI view from my 798. I have a few others, but this is the only one I on the net already:

[Don House]

Here's one SI view from my 798. I have a few others, but this is the only one I on the net already:

Now that is a nice Pic! Great Job...

Good Fishing

Don

[redbud]

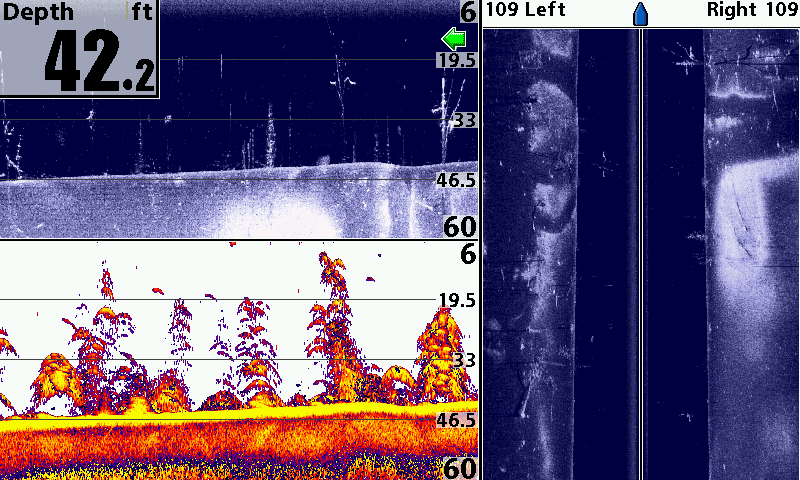

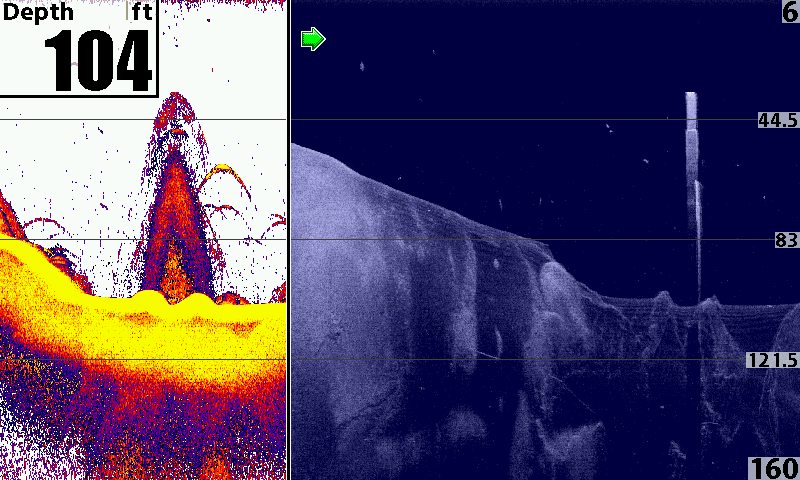

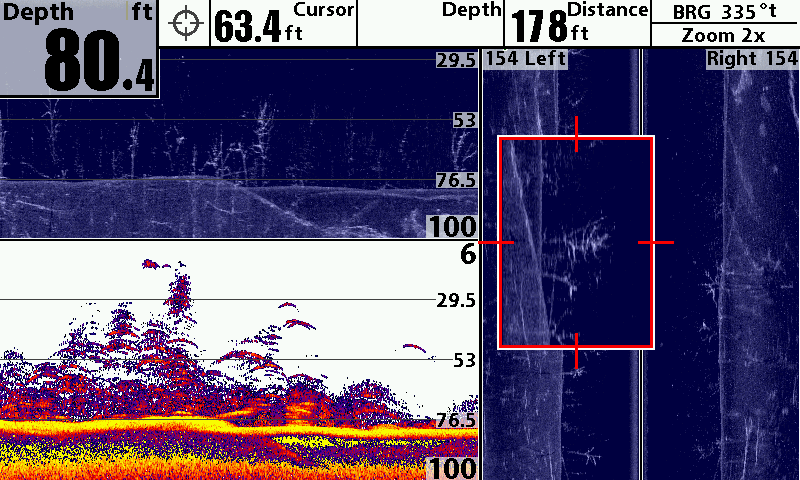

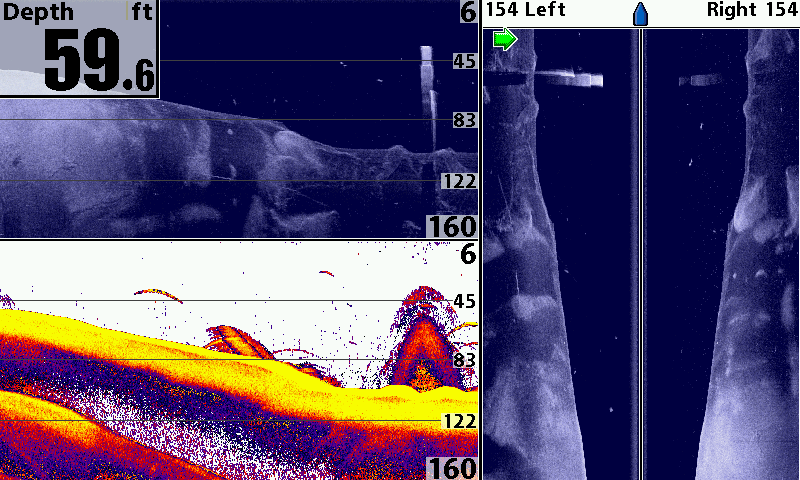

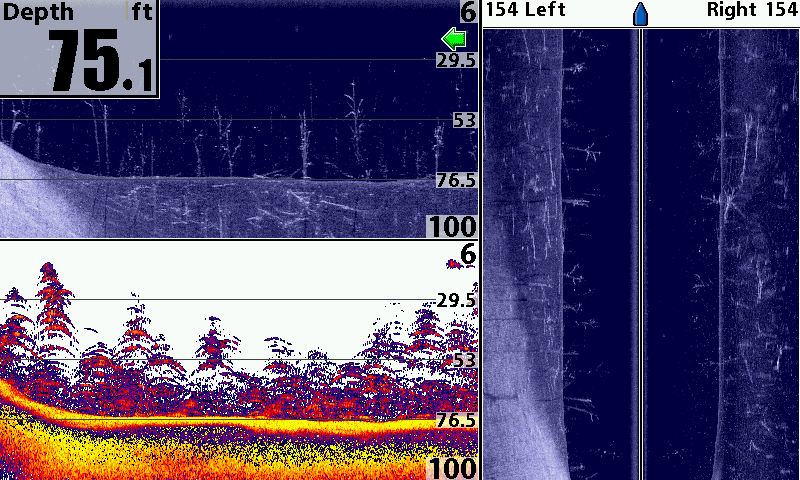

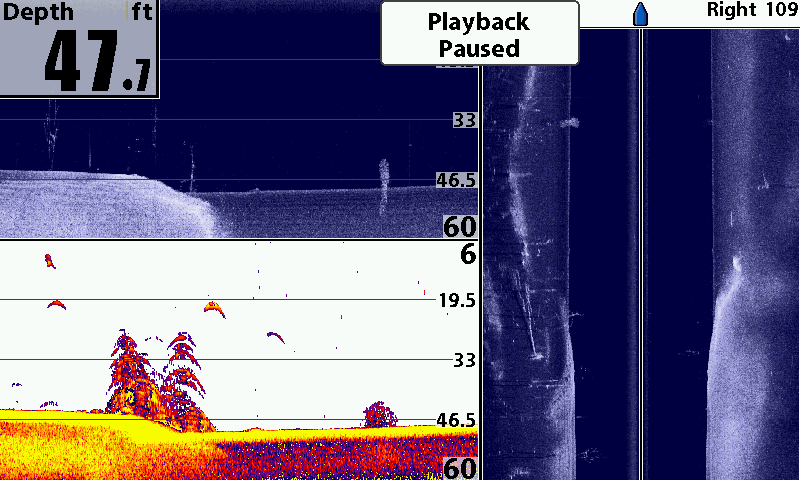

Here are some more pics from Table Rock.I will try to keep them in order with description of each.

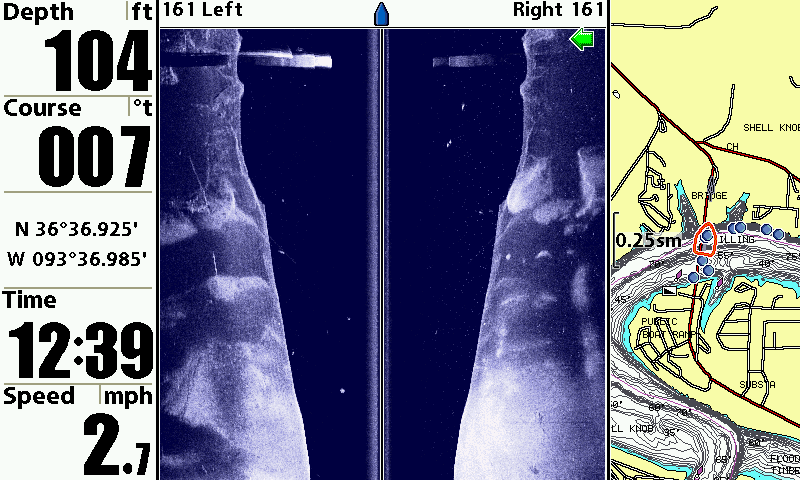

86 Shell Knob bridge,parallel with roadway

87 deep abutment in main channel

88 idling into Mill creek around third point

89 Mill Creek

90 bait ball

91 more bait

92 farther back Mill creek nice rock pile on left

93 SI view of same hump

94 old foundation?near old creek bed

95 triple view of old creek channel

97 down view of same

100 secondary creek channel in way back in mill

101 mill creek with waypoints of previous pics

102 west side near the mouth of the Kings old creek cuts

103 deep bridge with waypoints of earlier pics

I hope thats not to much,

good luck out there , I hope this helps.

[Frost1920]

Wow, I'd be willing to PAY for more descriptions of what these screen shots are showing. Thanks alot RedBud. That was awesome! I can compare the DI and the SI with the regular color screen shots, and it really gives me a heads up with my stoneage, black and white, Fishmark 480. I see stuff on it and have really no idea what it is telling me. Comparing what I've seen to these screen shots is GREAT! Thanks alot. This should be a thread that keeps going and going, with people posting screen shots more often of just "stuff". Im not asking for secret spots or locations, just keep these shots coming and maybe a little description of whats on the screen! Thanks a lot guys for taking the time and making the effort to post this stuff for guys like me to drool over.

[edwin]

One additional huge benefit of the most recent upgrade is the addition of the Lowrance-like color option on the sonar. With all the new down imaging pics that I've seen on this site and around the web, nearly every single one that included the sonar view was using the new colors. Personally for me, I couldn't hardly see the original HB color scheme w/o taking off my polarized shades. Fantastic improvement IMO.

[jeb]

Redbud,

Thanks for the pics from your 997. If you can, could you post up your exact specs? I was out on Beaver with my 997 Friday and did not get great results with DI. Will probably try again today, but your shots are great, so would make a good place to start.

Which DI beam (narrow, med, wide)?

SI frequency?

SI enhance settings?

DI sensitivity?

Etc?

Thanks in advance!

[redbud]

Jeb,

The settings on my 997 are as follows

DI beam wide

DI sens 12-14

SI freq.455khz

SI sens 11

SI enhance sens.11,contrast 13,sharpness off

switchfire clear

sonar beam 200/83khz [ 83khz sens 3]

bottomview - structure id

surface clutter 7

chart speed 5

low range- auto

these are the settings on my unit right now. I have a 12volt source [fused 3amp] in the house so I dont have to sit in my boat to review my day on the water. Make sure you have the right transducer selected ,it should say on the bottom of the box if you still have it.It took a little tweeking to get the transducer mounted at the right angle to the water[lake bed] make sure the trans. is parallel to the water line on your boat My champ 196 sits bow high on the trailer,this made a big difference .Try to keep your boat travelling in a straight line using your compass bearing.It also seems to make a difference how my out board is trimmed. These things are remarkably sensitive make small adjustments.My guess is a transducer problem because i dont really have to change settings on the 997 to get a good sounding.

If you want to see some really cool SI images go to www.xumba.scholleco.com .It is a humminbird forum and there are pics people send in from all over the world ,shipwrecks etc.

I hope this will help and good luck out there.

[jeb]

Thanks. Similar to the settings I ended up with today. I posted them along with a picture in the other HB thread in here.
